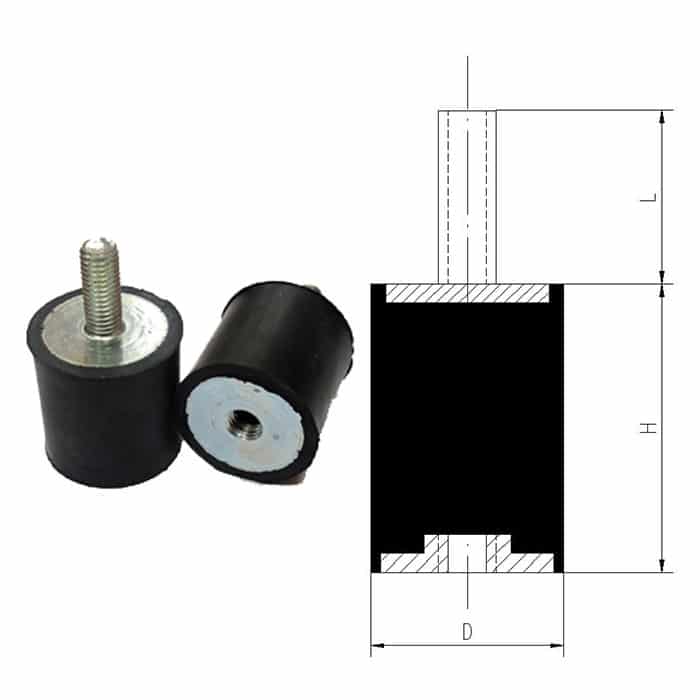

Estos amortiguadores se utilizan para la amortiguación de vibraciones internas de la máquina (motores, bombas, grupos hidráulicos, etc.) o bien para permitir la vibración de partes de una máquina y que esta vibración no se transmita al exterior o se transmita lo menos posible (cribas, vibradoras,…). Todos los modelos se utilizan en compresión y cizallamiento.
Disponible en diferentes medidas.
|

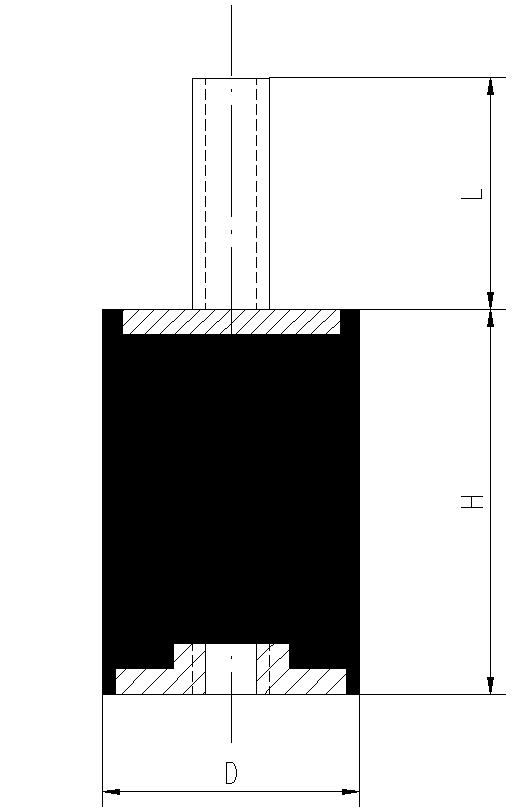

Modelo |
D |
H |
Métrica y |
Flecha |
Carga |
|
m/m |
m/m |
Largo de espiga (L) |
m/m |
Kgs. |
|
|
TH 10-10 |
10 |
10 |
M-4x 10 |
2 |
10 |
|
TH 10-15 |
10 |
15 |
M-4 x 10 |
3 |
8 |
|
TH 12,5-10 |
13 |
10 |
M-5x 12 |
1,5 |
12 |
|
TH 12,5-15 |
13 |
15 |
M-5 x 12 |
3 |
10 |
|
TH 12,5-20 |
13 |
20 |
M-5x 12 |
3,5 |
8 |
|
TH 16-8 |
16 |
8 |
M-4 x 10 ó M-5 x 12 |
1,5 |
15 |
|
TH 16-10 |
16 |
10 |
M-4 x 10 ó M-5 x 12 |
1,5 |
20 |
|
TH 16-15 |
16 |
15 |
M-4 x 10 ó M-5 x 12 |
3 |
20 |
|
TH 16-20 |
16 |
20 |
M-4 x 10 ó M-5 x 12 |
4 |
20 |
|
TH 16-25 |
16 |
25 |
M-4 x 10 ó M-5 x 12 |
5 |
15 |
|
TH 20-10 |
20 |
10 |
M-6x 13 |
2 |
30 |
|
TH 20-15 |
20 |
15 |
M-6 x 13 |
3 |
25 |
|
TH 20-20 |
20 |
20 |
M-6x 18 |
4 |
25 |
|
TH 20-25 |
20 |
25 |
M-6 x 18 |
5 |
25 |
|
TH 20-30 |
20 |
30 |
M-6 x 18 |
7 |
25 |
|
TH 25-10 |
25 |
10 |
M-8 x 20 ó M-6 x 16 |
1,5 |
50 |
|
TH 25-15 |
25 |
15 |
M-8 x 20 ó M-6 x 16 |
3 |
50 |
|
TH 25-20 |
25 |
20 |
M-8 x 20 ó M-6 x 16 |
4 |
50 |
|
TH 25-22 |
25 |
22 |
M-8 x 20 ó M-6 x 16 |
4 |
45 |
|
TH 25-25 |
25 |
25 |
M-8 x 20 ó M-6 x 16 |
5 |
40 |
|
TH 25-30 |
25 |
30 |
M-8 x 20 ó M-6 x 16 |
6 |
35 |
|
TH 25-40 |
25 |
40 |
M-8 x 20 ó M-6 x 16 |
10 |
50 |
|
TH 30-15 |
30 |
15 |
M-8 x 20 |
3 |
£/V/ |
|
TH 30-20 |
30 |
20 |
M-8 x 20 |
4 |
90 |
|
TH 30-22 |
30 |
22 |
M-8 x 20 |
4 |
90 |
|
TH 30-25 |
30 |
25 |
M-8 x 20 |
5 |
85 |
|
TH 30-30 |
30 |
30 |
M-8 x 20 |
6 |
80 |
|
TH 30-40 |
30 |
40 |
M-8 x 20 |
8 |
60 |
|
TH 35-35 |
35 |
35 |
M-8 x 20 |
8 |
90 |
|
TH 40-20 |
40 |
20 |
M-10 x 25 ó M-8 x 20 |
4 |
160 |
|
TH 40-25 |
40 |
25 |
M-10 x 25 ó M-8 x 20 |
6 |
155 |
|
TH 40-28 |
40 |
28 |
M-10 x 25 ó M-8 x 20 |
6 |
155 |
|
TH 40-30 |
40 |
30 |
M-10 x 25 ó M-8 x 20 |
8 |
150 |
|
TH 40-35 |
40 |
35 |
M-10 x 25 ó M-8 x 20 |
8 |
120 |
|
TH 40-40 |
40 |
40 |
M-10 x 25 ó M-8 x 20 |
10 |
120 |
|
TH 40-45 |
40 |
45 |
M-10 x 25 ó M-8 x 20 |
12 |
110 |
|
TH 50-20 |
50 |
20 |
M-10 x 25 |
4 |
250 |
|
TH 50-25 |
50 |
25 |
M-10 x 25 |
5,5 |
250 |
|
TH 50-30 |
50 |
30′ |
M-10 x 25 |
8 |
250 |
|
TH 50-35 |
50 |
35 |
M-10 x 25 |
9 |
230 |
|
TH 50-40 |
50 |
40 |
M-10 x 25 |
10 |
220 |
|
TH 50-45 |
50 |
45 |
M-10 x 25 |
11 |
210 |
|
TH 50-50 |
50 |
50 |
M-10 x 25 |
12 |
200 |
|
TH 50-55 |
50 |
55 |
M-10 x 25 |
13 |
200 |
|
TH 60-25 |
60 |
25 |
M-10 x 30 |
5 |
400 |
|
TH 60-35 |
60 • |
35 |
M-10 x 30 |
7 |
350 |
|
TH 60-45 |
60 |
45 |
M-10 x 30 |
10 |
300 |
|
TH 60-60 |
60 |
* 60 |
M-10 x 30 |
12 |
250 |
|
TH 70-35 |
70 |
35 |
M-10 x 30 |
7 |
450 |
|
TH 70-50 |
70 |
50 |
M-10 x 30 |
10 |
350 |
|
TH 70-70 |
70 |
70 |
M-10 x 30 |
13 |
300 |
|
TH 75-25 |
75 |
25 |
M-12 x 35 |
5 |
650 |
|
TH 75-40 |
75 |
40 |
M-12 x 35 |
9 |
500 |
|
TH 75-45 |
75 |
45 |
M-12 x 35 |
10 |
500 |
|
TH 75-55 |
75 |
55 |
M-12 x 35 |
13 |
450 |
|
TH 80-30 |
80 |
30 |
M-14 x 35 |
5,5 |
900 |
|
TH 80-40 |
80 |
40 |
M-14 x 35 |
9 |
600 |
|
TH 80-50 |
80 |
50 |
M-14 x 35 |
10 |
750 |
|
TH 80-70 |
80 |
70 |
M-14 x 35 |
15 |
550 |
|
TH 95-40 |
95 |
40 |
M-16 x 45 |
8 |
1.200 |
|
TH 95-55 |
95 |
55 |
M-16 x 45 |
11 |
1.000 |
|
TH 95-60 |
95 |
60 |
M-16 x 45 |
12 |
800 |
|
TH 95-75 |
95 |
75 |
M-16 x 45 |
13 |
700 |
|
TH 100-40 |
100 |
40 |
M-16 x 45 |
8 |
1.200 |
|
TH 100-60 |
100 |
’60 |
M-16 x 45 |
15 |
1.100 |
|
TH 100-75 |
100 |
75 |
M-16 x 45 |
17 |
1.000 |
|
TH 120-50 |
120 |
50 |
M-16 x 45 |
9 |
1.500 |
|
TH 120-75 |
120 |
75 |
M-16 x 45 |
13 |
1.200 |
|
TH 120-100 |
120 |
100 |
M-16 x 45 |
1-6 |
1.000 |
|
TH 130-40 |
130 |
40 |
M-16 x 45 |
6 |
1.900 |
|
TH 130-50 |
130 |
50 |
M-16 x 45 |
9 |
1.600 |
|
TH 130-75 |
130 |
75 |
M-16 x 45 |
13 |
1.450 |
|
TH 130-100 |
130 |
100 |
M-16 x 45 |
16 |
1.200 |
|
TH 150-50 |
150 |
50 |
M-16 x 45 ó M-20 x 50 |
9 |
1.800 |
|
TH 150-60 |
150 |
60 |
M-16 x 45 ó M-20 x 50 |
14 |
2.200 |
|
TH 150-75 |
150 |
75 |
M-16 x 45 ó M-20 x 50 |
16 |
2.000 |
|
TH 150-100 |
150 |
100 |
M-16 x 45 ó M-20 x 50 |
16 |
1.400 |
|
TH 150-120 |
150 |
120 |
M-16 x 45 ó M-20 x 50 |
16 |
1.300 |
|
TH 150-140 |
150 |
140 |
M-16 x 45 ó M-20 x 50 |
16 |
1.200 |
