COMPRESIÓN |
CIZALLAMIENTO |
|||||||||
|
45 SH |
60 SH |
45 SH |
60 SH |
|||||||
|

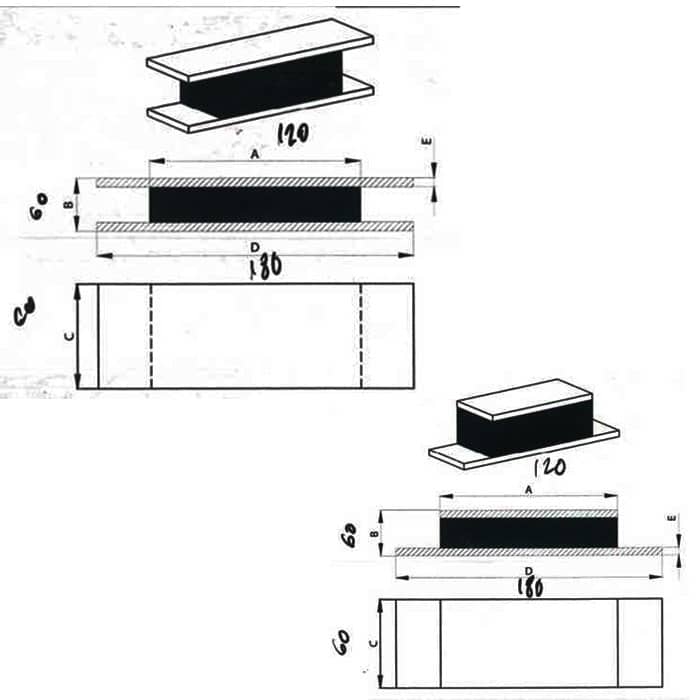

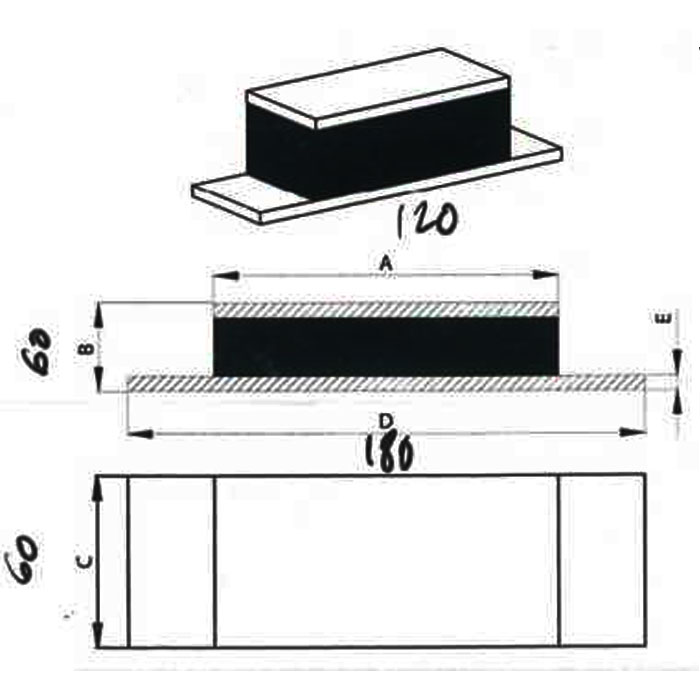

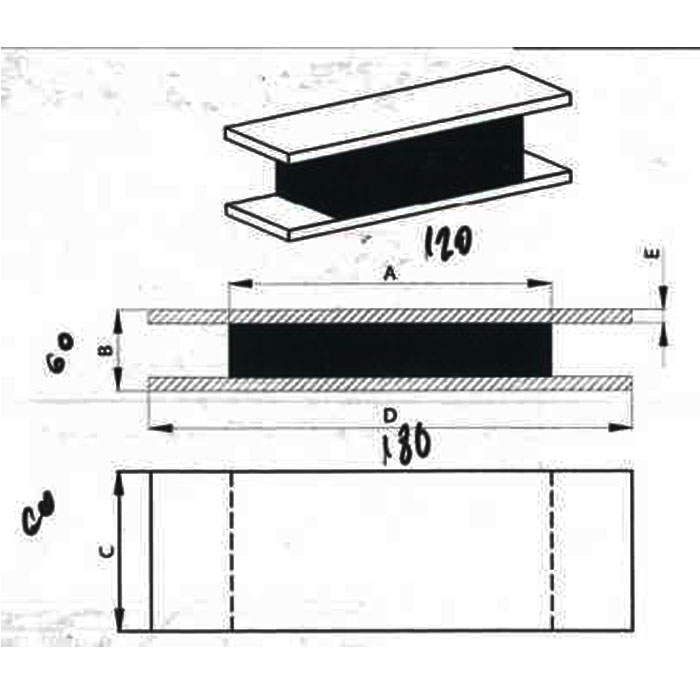

A |
B |
C |
D |
E |
Carga |
Flecha |
Flecha |
Carga |
Flecha |
Flecha |
|
m/m |
m/m |
m/m |
m/m |
m/m |
Kgs. |
m/m |
m/m |
Kgs. |
m/m |
m/m |
|
40 |
30 |
20 |
70 |
5 |
24 |
2,20 |
1,33 |
16 |
8,00 |
4,44 |
|
50 |
30 |
25 |
90 |
5 |
50 |
3,20 |
1,77 |
25 |
8,00 |
4,44 |
|
80 |
30 |
40 |
130 |
5 |
100 |
2,60 |
1,44 |
50 |
6,25 |
3,47 |
|
80 |
45 |
40 |
130 |
5 |
120 |
5,25 |
2,91 |
30 |
6,56 |
3,64 |
|
100 |
60 |
50 |
160 |
10 |
200 |
6,40 |
3,22 |
60 |
9,60 |
5,33 |
|
100 |
40 |
50 |
160 |
10 |
250 |
2,00 |
1,11 |
80 |
6,40 |
3,55 |
|
120 |
80 |
60 |
180 |
10 |
300 |
10,00 |
5,55 |
150 |
25,00 |
13,88 |
|
# 120 |
60 |
60 |
180 |
10 |
500 |
7,40 |
4,11 |
200 |
22,22 |
12,34 |
|
120 |
40 |
60 |
180 |
10 |
500 |
2,31 |
1,28 |
200 |
11,11 |
6,17 |
|
140 |
70 |
70 |
210 |
10 |
400 |
8,00 |
4,53 |
200 |
20,40 |
11,33 |
|
140 |
60 |
70 |
210 |
10 |
500 |
6,72 |
3,48 |
200 |
16,32 |
9,07 |
|
140 |
50 |
70 |
210 |
10 |
500 |
3,40 |
1,88 |
200 |
12,24 |
6,80 |
|
160 |
80 |
80 |
250 |
10 |
500 |
8,52 |
4,65 |
200 |
18,75 |
10,41 |
|
160 |
60 |
80 |
240 ? |
10 |
600 |
5,00 |
2,77 |
200 |
12,50 |
6,94 |
|
180 |
45 |
90 |
270 |
10 |
900 |
1,91 |
1,06 |
200 |
6,17 |
3,42 |
|
200 |
70 |
100 |
300 |
10 |
1200 |
8,00 |
4,44 |
300 |
15,00 |
8,33 |
|
200 |
60 |
100 |
300 |
10 |
1200 |
5,33 |
2,80 |
300 |
12,00 |
6,66 |
|
240 |
60 |
120 |
350 |
10 |
1500 |
3,62 |
2,01 |
600 |
16,66 |
9,25 |
|
240 |
50 |
120 |
350 |
10 |
5000 |
6,50 |
3,50 |
600 |
12,50 |
6,94 |
|
240 |
45 |
120 |
350 |
10 |
5000 |
3,94 |
2,19 |
600 |
10,41 |
5,74 |
|
300 |
70 |
200 |
350 |
10 |
10000 |
– |
7 |
– |
– |
– |
