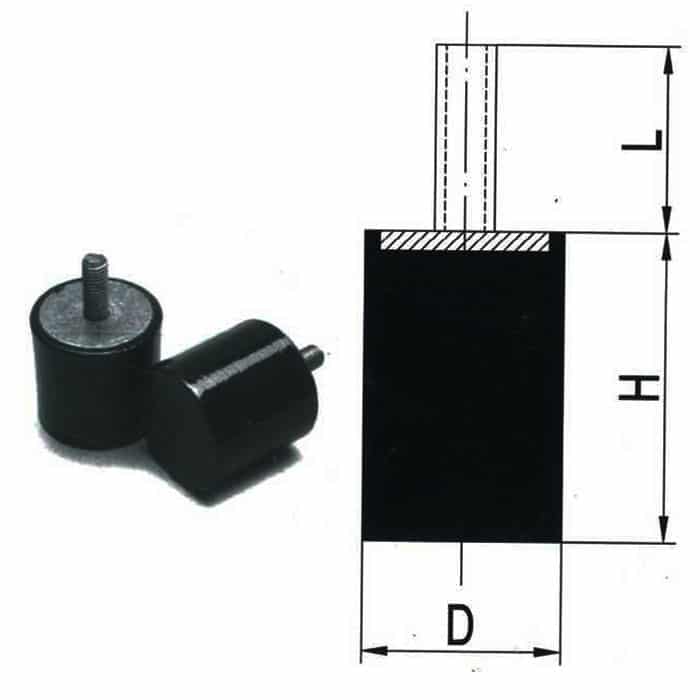

Estos amortiguadores se utilizan para la amortiguación de vibraciones internas de la máquina (motores, bombas, grupos hidráulicos, etc.) o bien para permitir la vibración de partes de una máquina y que esta vibración no se transmita al exterior o se transmita lo menos posible (cribas, vibradoras, …). Todos los modelos se utilizan en compresión y cizallamiento.
Disponible en diferentes medidas.
|
Modelo |
D |
H |
Métrica y |
Flecha |
Carga |
|
m/m |
m/m |
Largo de espiga (L) |
m/m |
Kgs. |
|
|
TS 10-10 |
10 |
10 |
M-4 x 10 |
2 |
10 |
|
TS 10-15- |
10 |
15 |
M-4 x 10 |
3 |
8 |
|
TS 12, 5-10 |
13 |
10 |
M-5 x 12 |
1, 5 |
12 |
|
TS 12, 5-15 |
13 |
15 |
M-5x 12 |
3 |
10 |
|
TS 12, 5-20 |
13 |
20 |
M-5 x 12 |
3, 5 |
8 |
|
TS 16-8 |
16 |
8 |
M-4 x 10 ó M-5 x 12 |
1, 5 |
15 |
|
TS 16-10 |
16 |
10 |
M-4 x 10 ó M-5 x 12 |
1, 5 |
20 |
|
TS 16-15 |
16 |
15 |
M-4 x 10 ó M-5 x 12 |
3 |
20 |
|
TS 16-20 |
16 |
20 |
M-4 x 10 ó M-5 x 12 |
4 |
20 |
|
TS 16-25 |
16 |
25 |
M-4 x 10 ó M-5 x 12 |
5 |
15 |
|
TS 20-10 |
20 |
10 |
M-6x 13 |
2 |
30 |
|
TS 20-15 |
20 |
15 |
M-6x 13 |
3 |
25 |
|
TS 20-20 |
20 |
20 |
M-6x 18 |
4 |
25 |
|
TS 20-25 |
20 |
25 |
M-6 x 18 |
5 |
25 |
|
TS 20-30 |
20 |
30 |
M-6x 18 |
7 |
25 |
|
TS 25-10 |
25 |
10 |
M-8 x 20 ó M-6 x 16 |
1, 5 |
50 |
|
TS 25-15 |
25 |
15 |
M-8 x 20 ó M-6 x 16 |
3 |
50 |
|
TS 25-20 |
25 |
20 |
M-8 x 20 ó M-6 x 16 |
4 |
50 |
|
TS 25-22 |
25 |
22 |
M-8 x 20 ó M-6 x 16 |
4 |
45 |
|
TS 25-25 |
25 |
25 |
M-8 x 20 ó M-6 x 16 |
5 |
40 |
|
TS 25-30 |
25 |
30 |
M-8 x 20 ó M-6 x 16 |
6 |
35 |
|
TS 25-40 |
25 |
40 |
M-8 x 20 ó M-6 x 16 |
10 |
50 |
|
TS 30-10 |
30 |
10 |
M-8 x 20 |
2 |
90 |
|
TS 30-15 |
30 |
15 |
M-8 x 20 |
3 |
90 |
|
TS 30-20 |
30 |
20 |
M-8 x 20 |
4 |
90 |
|
TS 30-22 |
30 |
22 |
M-8 x 20 |
4 |
90 |
|
TS 30-25 |
30 |
25 |
M-8 x 20 |
5 |
85 |
|
TS 30-30 |
30 |
30 |
M-8 x 20 |
6 |
80 |
|
TS 30-40 |
30 |
40 |
M-8 x 20 |
8 |
60 |
|
TS 35-35 |
35 |
35 |
M-8 x 20 |
8 |
90 |
|
TS 40-20 |
40 |
20 |
M-10 x 25 ó M-8 x 20 |
4 |
160 |
|
TS 40-25 |
40 |
25 |
M-10 x 25 ó M-8 x 20 |
6 |
155 |
|
TS 40-28 |
40 |
28 |
M-10 x 25 ó M-8 x 20 |
6 |
155 |
|
TS 40-30 |
40 |
30 |
M-10 x 25 ó M-8 x 20 |
8 |
150 |
|
TS 40-35 |
40 |
35 |
M-10 x 25 ó M-8 x 20 |
8 |
120 |
|
TS 40-40 |
40 |
40 |
M-10 x 25 ó M-8 x 20 |
10 |
120 |
|
TS 40-45 |
40 |
45 |
M-10 x 25 ó M-8 x 20 |
12 |
110 |
|
TS 50-20 |
50 |
20 |
M-10 x 25 |
4 |
250 |
|
TS 50-25 |
50 |
25 |
M-10 x 25 |
5, 5 |
250 |
|
TS 50-30 |
50 |
30 |
M-10 x 25 |
8 |
250 |
|
TS 50-35 |
50 |
35 |
M-10 x 25 |
9 |
230 220 |
|
TS 50-40 |
50 |
40 |
M-10 x 25 |
10 |
|
|
TS 50-45 |
50 |
45 |
M-10 x 25 |
11 |
210 |
|
TS 50-50 |
50 |
50 |
M-10 x 25 |
12 |
200 |
|
TS 50-55 |
50 |
55 |
M-10 x 25 |
13 |
200 |
|
TS 60-25 |
60 |
25 |
M-10 x 30 |
5 |
400 |
|
TS 60-35 |
60 |
35 |
M-10 x 30 |
7 |
350 |
|
TS 60-45 |
60 |
45 |
M-10 x 30 |
10 |
300 |
|
TS 60-60 |
60 |
60 |
M-10 x 30 |
12 |
250 |
|
TS 70-35 |
70 |
35 |
M-10 x 30 |
7 |
450 |
|
TS 70-50 |
70 |
50 |
M-10 x 30 |
10 |
350 |
|
TS 70*7-6—-TS 75-25 |
70 75 |
70 25 |
M-10 x 30 M-12 x 35 |
13 5 |
300 650 |
|
TS 75-40 |
75 |
40 |
M-12 x 35 |
9 |
500 |
|
TS 75-45 |
75 |
45 |
M-12 x 35 |
10 |
500 |
|
TS 75-55 |
75 |
55 |
M-12 x 35 |
13 |
450 |
|
TS 80-30 |
80 |
30 |
M-14 x 35 |
5, 5 |
900 |
|
TS 80-40 |
80 |
40 |
M-14 x 35 |
9 |
600 |
|
TS 80-50 |
80 |
50 |
M-14 x 35 |
10 |
750 |
|
TS 80-70 |
80 |
70 |
M-14 x 35 |
15 |
550 |
|
TS 95-40 TS |
95 |
40 |
M-16 x 45 |
8 |
1.200 |
